Connector & Fittings
Leading Manufacturers, Exporters, Wholesaler, Retailer and Distributor of Feeder Pillar Box, Low Voltage Aerial Bundled Conductor, Transformer Connector, Wedge Connector, LV ABC Accessories and High Voltage Connection System from Pune.
| Business Type | Distributor |
| Application | Industrial Use |
| Weight | 10-20 Kg |
| Width | 1000-2000 Mm |
| Coating | Powder Coated |
| Height | 1000-2000 Mm |
It has secured 3 utilities patents and 2 design patents.
- Compact: 40% - 50% less footprint reduction
- Modular busbar arrangement for greater scalability
- Innovative connectors for low contact resistance and technical losses (80% loss reduction)
- Fully insulated and touch proof
- Smart features for online monitoring energy, fuse health & thermal profile
| Business Type | Distributor |
| Application | Industrial |
| Conductor Material | Aluminum |
| Conductor Type | High Voltage |
| Thickness | 9.5-10mm |
| Feature | Quality Assured |
The major advantages of LV ABC are:
- Total elimination of faults on LT lines
- Improved reliability
- Avoidance of theft by direct tapping
- Avoidance of overloading of Distribution transformers
| Business Type | Distributor |
| Material | Metal |
| Certification | CE Certified |
| Application | Connecting Transformers |
| Feature | Easy To Connect, Four Times Stronger |
| Brand Name | Raychem |
Features and Benefits:
- Simple and easy Installation
- Light weight connecting system
- No tools required
- Low resistance (I2R) losses
- Maintenance free
- Reliable & Insulated connection
| Business Type | Distributor |
| Material | Aliminium Alloy, SS |
| Application | Power Connecting |
| Color | Silver |
| Surface Finishing | Galvanised |
| Standard | ASTM, ANSI |
- Designed specially to manage peak power transmission temperature up to 250 degrees
- Provides an efficient electrical connection for any type of power conductor combination
- Withstands severe electrical and mechanical stresses
- Easy installation without damage to conductors
- Easy removal of connector without damaging the conductors and are re-usable
| Business Type | Distributor |
| Material | Metal |
| Application | Power Connecting |
| Color | Silver |
| Feature | Corrosion Resistant, Watertight Joints |
| Surface Treatment | Polished |
| Pack Type | Box |

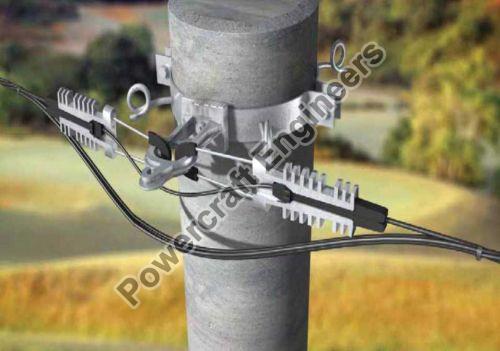

Anchor Clamps For Self-Supporting LV-ABC Lines
The clamps are designed to anchor self-supporting LV-ABC lines with 2 to 4 cores. The wedge type clamp is self-adjusting. Pilot wires or street lighting conductors are led alongside the clamp.
The insertion of conductors is facilitated by an integrated spring, which helps open the clamp. The version with movable arms in addition simplifies the installation
Features:
- Single M12 bolt and self-locking nut allow clamp to be fixed also to closed eye screws and brackets
- Short length of approx. 320 mm
- Exceeds requirements according to ESI 43-14 and VDE 0211 and in futureto CENELEC prEN 50483-2
- Clamp made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel
Anchor Clamps For LV-ABC Lines With Insulated Neutral Messenger
The clamps are designed to anchor LV-ABC lines with insulated neutral messenger. The clamp consists of an aluminium alloy cast body and self-adjusting plastic wedges which clamp the neutral messenger without damaging its insulation.
The flexible stainless steel bail protected by plastic wear-resistant saddle allows installations of up to 3 clamps on a bracket. The clamp and the bracket are available either separately or together as assembly.
Features :
- Tool free installation
- Not lose parts
- Exceeds requirements according to CENELEC prEN 50483-2 and NFC 33 041 and 042
- Clamp body made of corrosion resistant aluminium alloy, bail of stainless steel, wedges of weather and UV resistant polymer
- Universal fixing of bracket by 2 bolts M14 or stainless steel straps of 20 x 0,7 mm
- Bracket made of corrosion resistant aluminium alloy
| Business Type | Distributor |
| Material | Mild Steel |
| Application | Substation |
| Feature | High Quality, Light Weight |
| Finishing | Polished |
| Voltage | 1200 kV |
